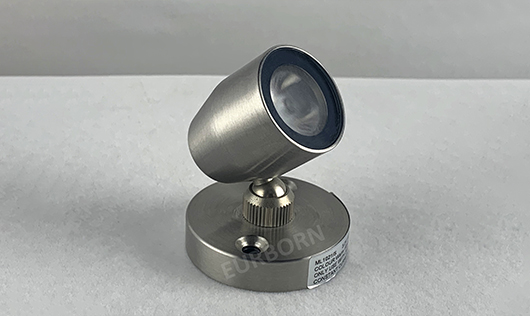

Ntsa teeb ML1021

Cov lus piav qhia luv luv:

Tej yam me me tso tawm pom lub teeb tshwj xeeb Stainless Steel siv ntsuas rau IP65 ua cov khoom no haum rau ob sab hauv thiab sab nrauv daim ntaub ntawv. Cov khoom yog qhov kev taw qhia thiab yog li zoo meej rau lub teeb focal nta ntawm phab ntsa lossis hauv cov txee teeb rooj. Tempered iav.Incorporates kev sib xyaw ua ke CREE USA LED dawb nti teeb tsa ntawm 1W lossis 2W. Lub zog tsis muaj zog, tsis muaj kev daws teeb meem。 Muaj peb tus qauv ntawm lub teeb ntsa no. Muaj ntau txoj kev xaiv rau lub teeb nrig. Thiab lub teeb lub teeb muaj peev xwm muab tau manually tig kom ua tiav qhov kev xav tau lub teeb. Ntau lub tsev so tau xaiv qhov zoo tshaj plaws no rau kho kom zoo nkauj thiab teeb pom kev zoo. ML1021 yog ua los ntawm ib lub teeb 1W thiab ib lub hauv paus, tseem muaj tsev neeg cov txheej txheem xws li ML1021, PL021, PL023, thiab PL026. Koj tseem tuaj yeem pom cov tsos ntawm me me mus rau qhov loj ntawm lub vev xaib ntawm peb lub vev xaib ntau dua intuitively .. ML1022 thiab ML1022-30 yog ob qho los ua ob lub 1W teeb thiab lub hauv paus thaum ML1022-30 muaj qhov 30 degree qaij. Nws muab koj xaiv txoj kab teeb ci 20/60 thiab lub teeb xim: CW, WW, NW, Liab, Ntsuab, Xiav, Amber.


Khoom Nthuav dav

Thauj khoom thiab ntim khoom

Khoom kuaj

Daim ntawv pov thawj

Peb txawv

Cov khoom lag luam

Cev nqaij daim tawv

1

LAWV

LED Teeb los Muaj Zog LED
Lub Teeb Xim CW, WW, NW, Liab, Ntsuab, Xiav, Amber
Cov khoom siv SUS316
Kev Ntsej Muag S2O ° / F6O °
Lub Zog 1W / 2W
Lub hwj chim muab Tsis muaj
Qhov Dim Tsis muaj
Nyhav Tsis muaj
Qhov Ntsuas Tus IP IP65
Kev pom zoo CE.RoHS, IP
Huab cua sov qhov kub -20 ° C + 45 ° C
Lub neej nruab nrab 5O, OOOHrs
Accessories (Yeem) Tsis muaj
Cov ntawv thov Nyob sab hauv tsev / sab nraum zoov / toj roob hauv pes



ML102 PHAB NTUJ

Qauv No. LED Hom Xim Beam PowerMode Cov lus qhia Thaiv Hlab hlau Lub Zog Luminous Flux Qhov Dim DrillSize
ML1021 QHUA CW, WW, NW, Liab Liab, Xiav, Amber S20 / F60 Tas mus li tam sim no 350mA Series 1W 1.1M 2X24AWG Cable 100LM D45X53 Tsis muaj
ML1022 QHUA CW, WW, NW, Liab Liab, Xiav, Amber S20 / F60 Tas mus li tam sim no 350mA Series 2W 1.1M 2X24AWG Cable 200LM 35X75X56 Tsis muaj
ML1022-30 QHUA CW, WW, NW, Liab Liab, Xiav, Amber S20 / F60 Tas mus li tam sim no 350mA Series 2W 1.1M 2X24AWG Cable 200LM 43X75X56 Tsis muaj
* Kev them nyiaj yug IES Cov ntaub ntawv.

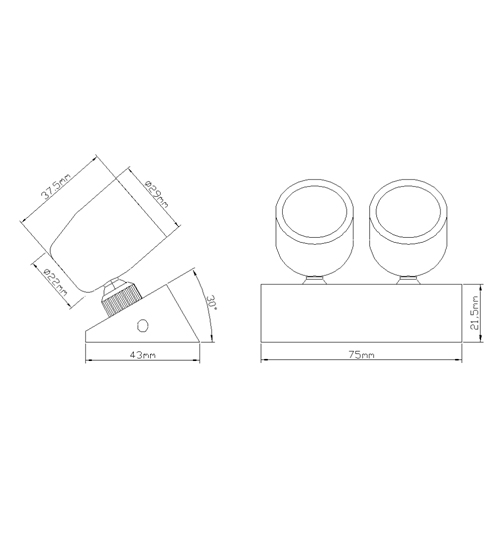

Daim duab qhia phiaj xwm


  • Yav dhau los:
  • Tom ntej:

  • Txhua yam khoom yuav raug ntim thiab xa tawm tsuas yog tom qab txhua yam khoom tau dhau los ntau qhov ntsuas, thiab lub ntim khoom kuj yog qhov tseem ceeb tshaj plaws uas tsis tuaj yeem tsis quav ntsej. Raws li lub teeb roj stainless cov pa hnyav yog qhov hnyav, peb xaiv qhov zoo tshaj plaws thiab qhov nyuaj tshaj plaws corrugated carton rau cov ntsiab lus ntawm kev ntim khoom kom paub meej tias cov khoom tuaj yeem tiv thaiv zoo los ntawm kev cuam tshuam lossis tsoo thaum lub sijhawm kev thauj mus los. Txhua yam khoom ntawm Oubo sib raug rau lub thawv sab hauv tshwj xeeb thiab yuav xaiv cov ntim ntim sib thooj raws li qhov xwm, lub xeev thiab qhov hnyav ntawm cov khoom thauj khoom kom ntseeg tau tias txhua yam khoom ntim tau ntim yam tsis muaj qhov sib txawv nruab nrab ntawm lub thawv thiab cov khoom tau tsau hauv lub thawv. Peb lub pob tas li yog xim av corrugated sab hauv lub thawv thiab xim av corrugated sab hauv lub thawv. Yog tias cov neeg siv khoom xav tau ua cov thawv xim tshwj xeeb rau cov khoom lag luam, peb kuj tuaj yeem ua tiav nws, tsuav koj qhia peb cov kev muag khoom ua ntej, peb yuav ua cov kev kho kom haum nyob rau theem thaum ntxov.



    Raws li tus kws tshaj lij cov chaw tsim hluav taws xob teeb txawb sab nraum zoov, Eurborn nws tus kheej tiav cov kev ntsuas lub chaw soj nstuam. Peb tsis yog suav ntawm kev ua sab nraud thib peb vim tias peb twb muaj cov khoom siv tshaj lij thiab ua tiav cov cuab yeej tshaj lij, thiab txhua yam khoom siv tau tshuaj xyuas thiab tswj xyuas tas li. Ua kom ntseeg tau tias txhua yam khoom siv tuaj yeem ua haujlwm tsis tu ncua thiab ua kom haum raws sijhawm thiab tswj hwm cov kev tshuaj ntsuam cov khoom lag luam nyob hauv thawj zaug.

    Eurborn rhiav muaj ntau lub tshuab ua haujlwm tshaj lij thiab cov khoom siv sim xws li cov cua kub ncu, lub tshuab nqus tsev, lub tshuab nqus UV UV, lub tshuab ntsuas laser, lub tshuab ntsuas qhov ntsuas kub tas mus li, ntsuas kub thiab vaum qhov ntsuas, ntsev txau kuaj cov tshuab, ceev ceev LED spectrum tsom tshuab, Luminous siv faib kev xeem tshuab (IES kuaj), UV tua cov roj thiab qhov hluav taws xob tas li kom qhuav lub qhov cub, thiab lwm yam. Peb tuaj yeem ua tiav kev tswj hwm lub zog rau txhua yam khoom peb ua tau.

    Txhua qhov khoom yuav dhau los 100% kev ntsuas hluav taws xob ntsuas, ntsuas 100% kev laus thiab 100% kev ntsuas dej. Raws li ntau lub xyoo dhau los ntawm kev paub txog cov khoom lag luam, ib puag ncig lub ntsej muag los ntawm cov khoom lag luam yog pua pua lub teeb sib tw dua li cov teeb nyob sab hauv tsev rau sab hauv tsev thiab sab hauv qab cov teeb txawb steel hlau. Peb paub zoo tias lub teeb yuav tsis pom teeb meem nyob rau lub sijhawm luv luv hauv ib puag ncig ib puag ncig. Rau Eurborn cov khoom lag luam, peb tshwj xeeb tshaj yog kev ua kom paub tseeb tias lub teeb tuaj yeem ua tiav kev ua hauj lwm ruaj khov nyob ntev hauv ntau qhov chaw hnyav. Nyob rau hauv ib puag ncig ib puag ncig, peb simulated ib puag ncig kev kuaj yog ob peb zaug harsher. Ib puag ncig hnyav no tuaj yeem qhia qhov zoo ntawm LED teeb kom paub tseeb tias tsis muaj cov khoom tsis zoo. Tsuas yog tom qab kuaj xyuas los ntawm cov khaubncaws sab nraud povtseg yuav Ober xa cov khoom lag luam zoo tshaj plaws rau peb Cov neeg siv khoom tes.

    测试



    Eurborn muaj cov ntawv pov thawj tsim nyog xws li IP, CE, ROHS, pom zoo patent thiab ISO, thiab lwm yam.
    Daim ntawv pov thawj IP: Lub Txheej Txheem Lub Teeb Ua Haujlwm Thoob Ntiaj Teb (IP) cais cov teeb raws li lawv tus IP coding system rau plua plav, khoom txawv teb chaws thiab muaj dej tsis nkag. Piv txwv li, Eurborn tsuas yog tsim cov khoom lag luam sab nraud xws li faus & hauv av teeb, hauv qab teeb teeb. Txhua lub teeb ci sab hauv stainless hlau ntsib IP68, thiab lawv tuaj yeem siv rau hauv kev siv lossis siv rau hauv qab dej. EU CE daim ntawv pov thawj: Cov khoom yuav tsis tsim kev hem thawj qhov kev nyab xeeb ntawm tib neeg, tsiaj thiab khoom lag luam kev nyab xeeb. Txhua tus ntawm peb cov khoom muaj CE ntawv pov thawj. ROHS daim ntawv pov thawj: Nws yog qhov yuav tsum tau ua qauv tsim los ntawm EU txoj cai. Nws lub npe tag nrho yog "Cov Lus Qhia rau Kev Txwv rau Kev Siv qee yam Khoom Siv Ua Nyaum Siv Hluav Taws Xob thiab Hluav Taws Xob". Nws yog feem ntau yog siv los ua cov khoom txheem thiab cov txheej txheem cov qauv ntawm cov khoom siv hluav taws xob thiab hluav taws xob. Nws yog qhov zoo dua rau tib neeg kev noj qab haus huv thiab kev tiv thaiv ib puag ncig. Lub hom phiaj ntawm cov qauv no yog tshem tawm cov txhuas, muaj mercury, cadmium, hexavalent chromium, polybrominated biphenyls thiab polybrominated diphenyl ethers hauv cov khoom siv hluav taws xob thiab hluav taws xob. Txhawm rau kom zoo dua cov kev tiv thaiv cov cai thiab kev nyiam ntawm peb cov khoom, peb muaj peb tus kheej zoo li ntawv pov thawj daim ntawv pov thawj rau cov khoom lag luam feem ntau. ISO daim ntawv pov thawj: ISO 9000 series yog cov nto moo tshaj plaws ntawm ntau cov qauv thoob ntiaj teb tau tsim los ntawm ISO (International Organisation rau Standardization). Cov qauv no tsis yog txhawm rau ntsuas qhov zoo ntawm cov khoom, tab sis ntsuas qhov ntsuas cov khoom ua tau zoo hauv cov txheej txheem ntau lawm. Nws yog ib lub koom haum tswj kev ua haujlwm.

    证书



    1.Qhov lub cev lub teeb ntawm cov khoom yog ua los ntawm SNS316L stainless hlau. 316 stainless hlau muaj Mo, uas yog zoo dua hauv kev txhim kho corrosion dua li 304 stainless hlau hauv cov chaw sov. 316 feem ntau txo cov ntsiab lus ntawm Cr thiab nce cov ntsiab lus ntawm Ni thiab nce Mo2% ~ 3%. Yog li ntawd, nws lub peev xwm tiv thaiv kev ua haujlwm tsis muaj zog yog 304, haum rau siv hauv tshuaj lom neeg, dej hiav txwv thiab lwm qhov chaw ib puag ncig.

    2.Cov khoom siv ua lub teeb ci LED adopts CREE. CREE yog tus coj kev teeb pom kev zoo ua kom zoo thiab semiconductor chaw tsim khoom ntawm kev ua lag luam. Qhov kom zoo dua ntawm cov nti tuaj ntawm cov khoom siv silicon carbide (SiC), uas tuaj yeem siv ntau zog hauv thaj chaw me me, thaum muab piv rau lwm cov thev naus laus zis, cov ntaub ntawv thiab cov khoom lag luam tsim kom muaj cua sov tsawg. CREE LED ua ke siv cov hluav taws xob uas tsis tshua muaj hluav taws xob ntau dhau ntawm InGaN cov khoom siv thiab lub tuam txhab cov tswv lag luam G · SIC® substrate rau hauv ib qho, kom qhov kev siv hluav taws xob ntau thiab ntau qhov siab ua tiav LED ua tiav cov nqi zoo tshaj.

    3.Cov iav adopts tempered iav + ntu ntawm silk npo, thiab lub khob iav yog 3-12 hli.

    4.Cov tuam txhab ib txwm xaiv cov khoom siv hluav taws xob muaj zog nrog cov hluav taws xob uas muaj peev txheej ntau dua li 2.0WM / K. Aluminium substrates yog siv los ua cov khoom siv hluav taws xob kub ncaj qha rau cov LEDs, uas cuam tshuam rau lub neej ua haujlwm ntawm LED. Lub siab thermal conductivity aluminium substrate muaj qhov zoo conduction thiab tshav kub dissipation muaj peev xwm, thiab yog qhov tsim nyog rau cov khoom lag luam uas xav tau lub siab kub dissipation muaj peev xwm, tshwj xeeb tshaj yog muaj hluav taws xob ntau LEDs.
